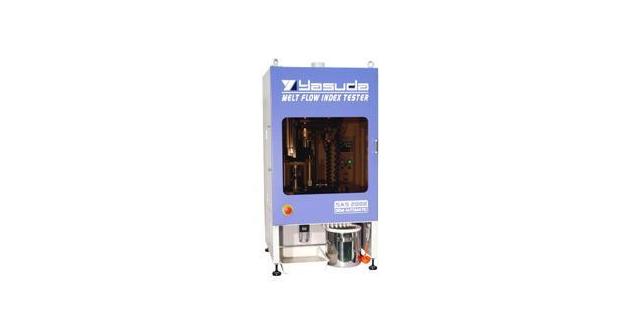

No.120-SAS-2000 SEMI AUTOMATIC MELT FLOW INDEX TESTER
| Hangings | 1 or 3 Hangings (2 kinds) |
| Die | φ2.095±0.005mm, L8.000±0.025mm |
| Piston | φ9.475±0.010mm, L6.35±0.10mm |
| Cylinder | φ9.550±0.025mm, L160mm |
| Temerature Range | Max.300°C (Option : Max.400°C) |
| Test Load | Choose the Largest Load from 0.325, 1.20, 2.16, 3.80, 5.00, 10.00kgf,and 21.60kgf |
| Method | Method A : Manual (Option : Automatic) Method B : Automatic |
| Specimen Feeding | Automatic |
| Weight Loading | Automatic |
| Weight Change | Manual (Option : Automatic) |
| Cylinder Cleaning | Automatic (Solvent Cleaning can also be Automatic) |
| Die Cleaning | Automatic |
| Piston Cleaning | Manual (Option: Automatic) |
| Die Cleaning Rod Cleaning | Manual (Option: Automatic) |
| Cleaning Gauze Feeding | Manual |
| Data Processing | Method A-Manual (Option: Automatic) Method B-Automatic |
| Software | Suitable for WindowsXP |
| Accessories | Cleaning Rod (Die & Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder, Infundibulum, Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun |
| Option | Hastelloy Cylinder, Specimen Purging Device, Specimen Drying Device, Air Compressor, Temperature Calibration Device, Exhaust Fan (Standard for No.120-LABOT), Smoke-Detection Sensor (Standard for No.120-LABOT) |
| Power Source | 220V 1-Phase 10A 50/60Hz |
| Air Source | 0.5MPa or More |
| Dimensions/Weight | [1 Hanging] W625×D600×H1,150mm・100kg [3 Hangings] W625×D680×H1,150mm・120kg |
